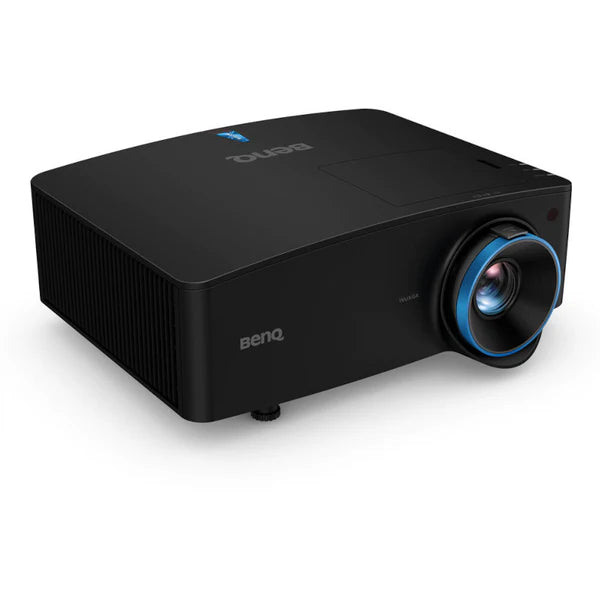

A black BenQ projector with a blue lens ring and fan vents on the side.

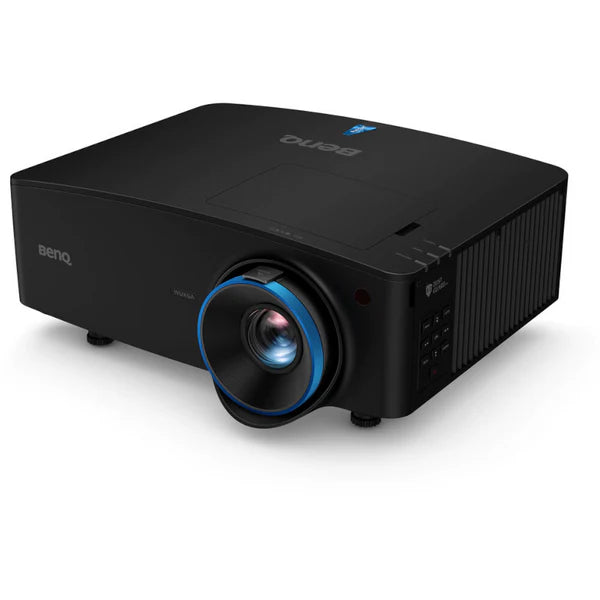

A black BenQ projector with a blue-rimmed lens and side control panel is shown on a white background.
Diagram comparing outdoor and limited flight golf setups with sensor-to-tee distances marked.

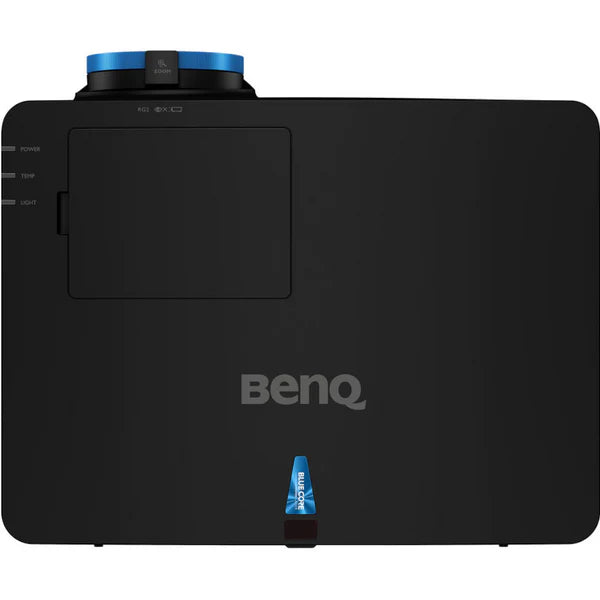

Top view of a BenQ projector with a black casing and blue accents, showing control buttons and a lens housing.

BenQ

BenQ LU935ST Laser Projector with 5500 Lumens & Short Throw Lens

$ 3,999.00
Quantity:
Reproduce True-to-life Images for Totally Immersive Experiences
  • HASSLE-FREE INSTALLATION - With V/ H lens shift, 2D keystone and corner fit
  • AMAZING COLOR ACCURACY - 92% Rec 709 color accuracy to see every detail
  • FAST <17ms response enables realistic simulation and gaming
  • 5500 ANSI LUMENS for Big screens - Will effortlessly fill large screens up to 20 feet wide
  • MAINTENANCE FREE DESIGN - Sealed IP5X laser engine means no dirty projector filters and 20,000 hour laser life

Details & Specifications

Vivid clarity in bright ambient environments with powerful 5500 lumen projection

For simulators with larger impact screens, you need a brighter projector to ensure your picture doesn’t get washed out. And golf simulators require more light for the tracking cameras to photograph and analyze hits, with the main consequence being that projectors built for golfing simulators need to put out a lot of brightness. The LU935ST’s 5500 lumens provide users bright projection that fills a typical 13 foot or wider impact screen while delivering excellent image quality.

16:10 WUXGA (1920x1200) resolution with HDR enabled

Beyond higher resolution that exceeds full HD 1080p, WUXGA (1920x1200) provides a taller 16:10 display, an aspect ratio that offers users more room to swing. HDR10 support with BenQ’s exclusive Auto HDR Color Rendition means the LU935T’s high dynamic range performance offers greater brightness, contrast, and image optimization.

Exclusive Golf Mode for vivid greens and blues

BenQ golf simulator projectors perfectly reproduce the lush greens and vivid blues of golf courses. BenQ teamed up with color experts to develop an exclusive Golf Mode that optimizes the blue sky and the green grass color. This allows golfers to immerse themselves in pleasantly natural reproductions of blue sky and green grass.

Cinema-level color gamut with 92% REC709 coverage

The LU935ST’s powerful laser projection utilizes a dual color wheel system that covers an unparalleled 92% of Rec.709, the industry-wide standard for color reproduction in HD video and movies. Enjoy golf, movies, and games in perfect color, knowing that what you’re seeing on screen is exactly what the director intended. In addition, the increased color ratios and pure laser-generated RGBY hues dramatically enhance color saturation and guarantee superior projected image quality compared to lamp projectors.

Placement outside hit zone plus no shadows with 0.81-0.89 throw ratio

For most golf simulation setups, a short throw projector helps you put the projector where it is needed to fill the screen while being mounted safely outside the hitting area and without casting a shadow. With throw ratios ranging from 0.81 to 0.89, the LU935ST projects a 171” (8x12ft (screen size); 91x146in (actual viewable size)) -218” image (10x15.5ft (screen size); 115x185in (actual viewable size)) when placed within just 10-14 feet from the screen, delivering a large picture without the expense of optional lenses.

Off center placement made possible with vertical and horizontal lens shift

Lens shift greatly enhances installation flexibility, enabling you to easily adjust the image to fill your screen even if the projector is placed off-center. The LU935ST’s lens shift feature can be used to properly align the image, shifting it up to 60% vertically and 23% horizontally relative to the dimensions of the screen, enabling you to mount your projector higher and to the side of the playing area if needed.

Ideal projection alignment with 2D keystone and corner fit

To counteract the trapezoid effect that can occur when a projector is installed or placed off-center, the LU935ST offers a 2D keystone correction range of up to ±30° on both the horizontal and vertical axes. Corner Fit control adjusts each corner for perfectly aligned image geometry.

HDMI 2.0 for supreme image quality

The LU935ST features HDMI 2.0 ports with full support for 4K 60Hz and HDR content, enhanced by greater brightness and contrast for experiences far superior to older versions of HDMI and standard dynamic range projection.

Maintenance free performance with laser technology

BenQ laser projectors eliminate the hassle and cost of installing replacement lamps while providing long lasting 20,000-hour light source life and beautiful colors. You can also start projecting right away without waiting for a lamp to warm up. Every BenQ laser projector has an IP5X-rated, dustproof sealed laser engine that eliminates the need for filters, perfect for environments such as a garage or basement. This also saves you money in the long run.


Brightness (ANSI lumens): 5500
Native Resolution: WUXGA (1920x1200)
Native Aspect Ratio: 16:10
Selectable Aspect Ratio: 16:10;16:9;4:3;Auto;Real
Light Source: Laser
Light Source Life: 20000 hrs
Throw Ratio: 0.81~0.89
Zoom Ratio: 1.1x
Projection Offset (Full-Height): 0%
Keystone Adjustment: Vertical ±30 degrees; Horizontal ±30 degrees
Corner Fit: Yes
Lens Shift Vertical: ±60%
Lens Shift Horizontal :±23%
HDMI in: (x2); HDMI (2.0a/HDCP2.2)x2
Net Weight (kg): 7
Dimensions (WxHxD) (mm): 416x166x351
