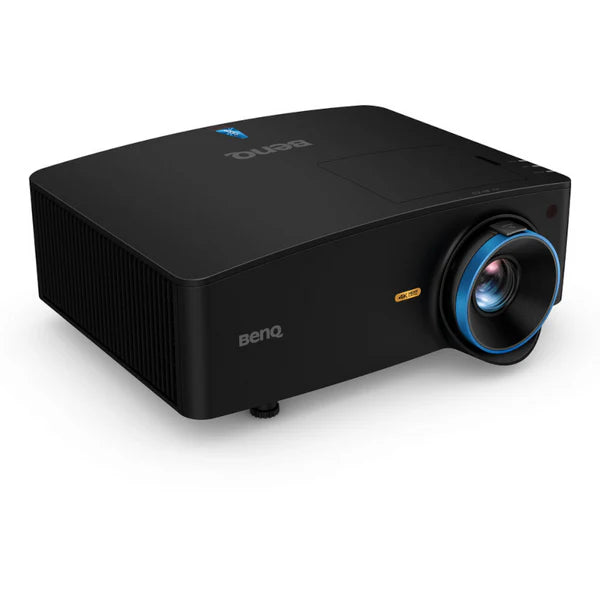

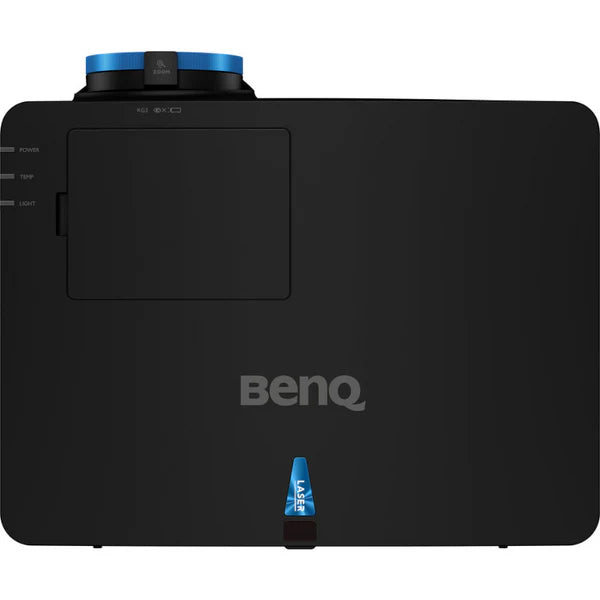

BenQ LK936ST 5100-Lumen 4K UHD Short-Throw Laser DLP Home Theater Projector

The LK936ST features a 4K UHD 3840 x 2160 resolution with 8.3 million pixels, or four times the resolution of full HD 1080p, providing awe-inspiring clarity and crisply-defined details. This is especially important if you are using high end simulators optimized for use with golf software, which support 4K output. HDR10 support with BenQ’s exclusive Auto HDR Color Rendition means the LK936ST’s high dynamic range performance offers greater brightness, contrast, and image optimization. The benefits of 4K extend beyond golf sims. The projector provides stunning home entertainment when watching the Masters in 4K or streaming movies and games on an immersive 200” screen.

Details & Specifications

4K UHD (3840×2160) resolution with HDR enabled for lifelike golf sims and home theater

The LK936ST features a 4K UHD 3840 x 2160 resolution with 8.3 million pixels, or four times the resolution of full HD 1080p, providing awe-inspiring clarity and crisply-defined details. This is especially important if you are using high end simulators optimized for use with software such as E6 CONNECT or TGC 2019, which support 4K output. HDR10 support with BenQ’s exclusive Auto HDR Color Rendition means the LK936ST’s high dynamic range performance offers greater brightness, contrast, and image optimization. The benefits of 4K extend beyond golf sims. The projector provides stunning home entertainment when watching the Masters in 4K or streaming movies and games on an immersive 200” screen.
Note: If you are trying to use a native 4K 16:9 projector to display in a 16:10 mode, you can set up a custom resolution from the graphic cards and maximize the resolution up to 3456x2160.

Vivid clarity in bright ambient environments with powerful 5100 lumen projection

For simulators with larger impact screens, you need a brighter projector to ensure your picture doesn’t get washed out. And golf simulators require more light for the tracking cameras to photograph and analyze hits, with the main consequence being that projectors built for golfing simulators need to put out a lot of brightness. The LK936ST’s 5100 lumens provide users bright projection that fills a typical 13 foot or wider impact screen while delivering excellent image quality,.

Exclusive Golf Mode for vivid greens and blues

BenQ golf simulator projectors perfectly reproduce the lush greens and vivid blues of golf courses. BenQ teamed up with color experts to develop an exclusive Golf Mode that optimizes the blue sky and the green grass color. This allows golfers to immerse themselves in pleasantly natural reproductions of blue sky and green grass.

Cinema-level color gamut with 92% REC709 coverage

The LK936ST’s powerful laser projection utilizes a dual color wheel system that covers an unparalleled 92% of Rec.709, the industry-wide standard for color reproduction in HD video and movies. Enjoy golf, movies, and games in perfect color, knowing that what you’re seeing on screen is exactly what the director intended. In addition, the increased color ratios and pure laser-generated RGBY hues dramatically enhance color saturation and guarantee superior projected image quality compared to lamp projectors.

Placement outside hit zone plus no shadows with 0.81-0.89 throw ratio

For most golf simulation setups, a short throw projector helps you put the projector where it is needed to fill the screen while being mounted safely outside the hitting area and without casting a shadow. With throw ratios ranging from 0.81 to 0.89, the LK936ST projects a 177” (7.7x13ft)-236”(10x18ft) image when placed within just 10-16 feet from the screen, delivering a large picture without the expense of optional lenses.

Off center placement made possible with vertical and horizontal lens shift

Lens shift greatly enhances installation flexibility, enabling you to easily adjust the image to fill your screen even if the projector is placed off-center. The LK936ST’s lens shift feature can be used to properly align the image, shifting it up to 60% vertically and 23% horizontally relative to the dimensions of the screen, enabling you to mount your projector higher and to the side of the playing area if needed.

Ideal projection alignment with 2D keystone, picture rotation and corner fit

To counteract the trapezoid effect that can occur when a projector is installed or placed off-center, the BenQ LK936ST offers a 2D keystone correction range of up to ±40° on both the horizontal and vertical axes, and can rotate the projected image clockwise or counterclockwise. Corner Fit control adjusts each corner for perfectly aligned image geometry.

Surround sound output with S/PDIF

The LK936ST has a S/PDIF port that supports 5.1 channel surround sound output. This high definition audio upgrade transforms your projector into a home theater system that offers immersive entertainment experiences in home golfing, movies, music, gaming, and more.

HDMI 2.0 for supreme image quality

The LK936ST features HDMI 2.0 ports with full support for 4K 60Hz and HDR content, enhanced by greater brightness and contrast for experiences far superior to older versions of HDMI and standard dynamic range projection.

Maintenance free performance with laser technology

BenQ laser projectors eliminate the hassle and cost of installing replacement lamps while providing long lasting 20,000-hour light source life and beautiful colors. You can also start projecting right away without waiting for a lamp to warm up. Every BenQ laser projector has an IP5X-rated, dustproof sealed laser engine that eliminates the need for filters, perfect for environments such as a garage or basement. This also saves you money in the long run.


Brightness (ANSI lumens): 5100
Native Resolution: 4K UHD (3840x2160)
Native Aspect Ratio: 16:9
Selectable Aspect Ratio: 16:10;16:9;4:3;Auto;Real
Light Source: Laser
Light Source Life: 20000 hrs
Throw Ratio: 0.81~0.89
Zoom Ratio: 1.1x
Projection Offset (Full-Height): 0%
Keystone Adjustment: Vertical ±40 degrees; Horizontal ±40 degrees; Rotation ±40 degrees
Corner Fit: Yes
Lens Shift Vertical: ±60%
Lens Shift Horizontal: ±23%
HDMI in: (x2); HDMI (2.0/HDCP2.2)x2
Net Weight (kg): 7
Dimensions (WxHxD) (mm): 416x166x351
